Description
Reservoir with Low Level Sensor
One Quart Reservoir w Low Level Sensor, 9383
One Gallon Reservoir w Low Level Sensor 9386
One Quart Reservoir w Low Level Sensor, 9383
One Gallon Reservoir w Low Level Sensor 9386

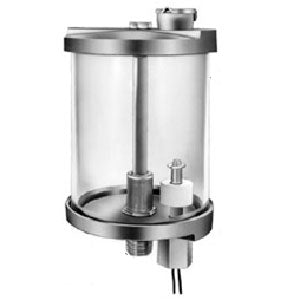

The same as the acrylic reservoirs above but these reservoirs have a float inside that can be wired to closes a circuit when the lubricant level almost reaches the bottom. This is useful to connecting low level warning light or sending signals to PC or CNC controllers. Available in quart or gallon sizes.
Max Recommended Current:
24 VDC 1.0 AMP
50 VDC 0.8 AMP
100 VDC 0.4 AMP
24 VAC 1.0 AMP
115 VAC 0.25 AMP
24 VDC 1.0 AMP
50 VDC 0.8 AMP
100 VDC 0.4 AMP
24 VAC 1.0 AMP
115 VAC 0.25 AMP
Dimensions 1Qt. 1Gal.
Diameter 4-1/2" 5-1/2"
Height 7-3/4" 14-13/16"
Additional Product Information
| Industry | Metal Fabrication |
|---|
